YRT325 Rotary Table Slewing Bearing

FOB Reference Price:Get Latest Price
$2,800.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Slewing Bearing
Brand Name:
BOBO OEM
Bore Size:
0 - 325 mm
Outside Diameter:
0 - 450 mm
Model Number:
YRT325
Feature:
Four Point Contact
Gear Options:
Nongeared
Seals Type:
Open
Place of Origin:
Shandong, China
Application:
Rotating Machine
CERTIFICATE:
ISO9001:2008
Service:
OEM Customized Services
Bearing type:
Slewing Bearing
Material:
Chrome Steel
Cage:
Brass Cage
Width:
60mm
Weight:
25kgs
Main Markets:
America Spain
Hardness:
HRC60-63
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Poly Wooden Case Package
Port
QINGDAO
Lead Time :
3-5 Days after the order confirmed

YRT325 Rotary Table Slewing Bearing:

YRT bearing consists of thrust/radial housing washer,a thrust/radial shaft,two Axial needle roller and cage assemblies and a group of radial cylindrical roller.Housing washer and shaft washer have equally sspaced fitting bolt.This kind of bearings have high axial load and radial load,and high tilting rigidity and high precision.This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration.This bearing requires higher quality or the parts to match it.You must control screw tightening torque when install it.

The Details Of YRT325 Rotary Table Slewing Bearing:

Item:YRT325 Rotary Table Slewing Bearing

Type:Slewing Bearing

Quality: ABEC 1

Material: Chrome Steel

Cage:Brass,Steel

Closures: Open

Lubrication: Oil Preservative

Dimensions:325 x 450x 60mm

ID (inner diameter)/Bore:325mm

OD (outer diameter):450mm

Width/Height/thickness:60mm

Dynamic load rating:275KN

Static load rating:1930KN

Quantity: One Bearing

YRT260 Rotary Table Slewing Bearing:

brandBOBO or OEM
Part numberYRT325
Unit weight25KG
cagenylon, brass
precision ratingP0, P6, P5, P4
vibrationV3, V2
clearanceC1, C2, C3
packagebox, carton+wooden case
paymentT/T, Western Union, Paypal
delivery time3-5 days after the order confirmed

 The Data Of  YRT325 Rotary Table Slewing Bearing:



 The Pictures of  YRT325 Rotary Table Slewing Bearing:

Our Advantages:
1. More than ten years bearing products exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customers, you can choose the loading port.
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.
Production Process:

Package Pictures:

Factory Picture:

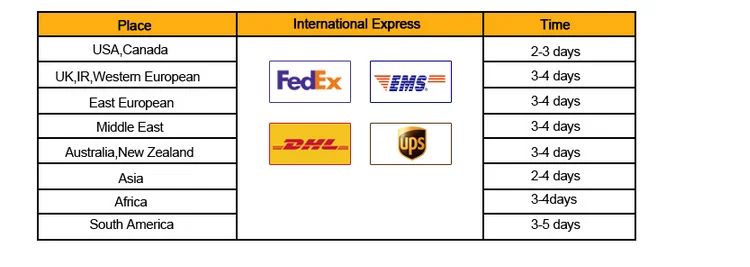

Logistics:
